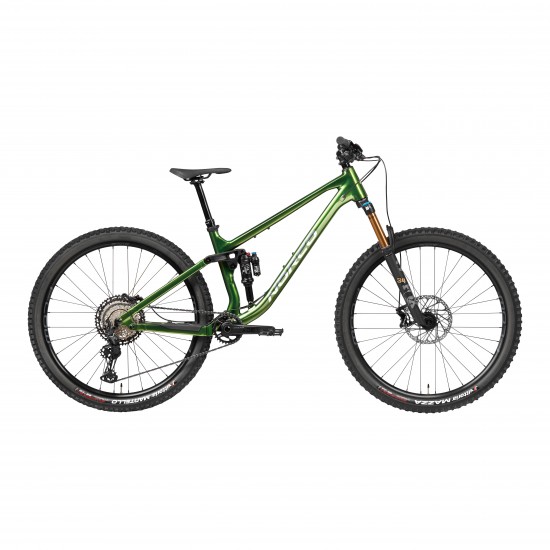

NORCO FLUID FS A1

NORCO:

Get everything out of the trail that you put into it.

The new Norco Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.

Get everything out of the trail that you put into it.
The Fluid FS A1's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.

Top-tier design and features over-deliver as skills evolve.
6061 aluminum frame gives experienced Trail riders what they need to ride their best and helps evolving riders develop new skills and preferences without limits.

Sophisticated suspension components for full-platform performance and tunability.
Precision-engineered 130mm rear suspension features custom-tuned dampers co-developed with the shock manufacturers provides fully customized suspension setup and performance for every rider.

Long-travel droppers and generous standover get you through the rough stuff.
Long-travel, size-specific 34.9mm dropper posts and low-slung top tubes create lots of room to move, letting you roll confidently through challenging terrain and push your limits.

Refined design and expanded size range for accessible Trail performance.
Boutique-level fit & finish is available in 5 frame sizes, delivering superior Trail performance to riders between 5’1” and 6’7” with components selected to offer peak performance and durability.

Perfect fit, dialed handling and personalized setup in minutes.
The Ride Aligned™ Design System matches each Fluid FS to the human who rides it. Rider-first geometry and suspension kinematics combine with custom fit and suspension tuning for personalized performance from day one.

SPECIFICATIONS

Frameset
FRAME 6061 Alloy, 130mm Travel
FORK Fox FLOAT Factory 34 GRIP2, 140mm Travel, 44mm Offset
REAR SHOCK Fox FLOAT X Performance Elite, 2-pos, Custom Tune, 210x50mm

Drivetrain
REAR SHIFTER Shimano XT SL-M8100-IR I-Spec EV
REAR DERAILLEUR Shimano XT RD-M8100
CRANKSET Praxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL)
BOTTOM BRACKET Praxis M24 Cartridge Bearing, BSA Threaded
CASSETTE Shimano XT, 10-51, 12 Speed
CHAIN Shimano XT

Brakes
FRONT BRAKE TRP Trail EVO, 4 Piston, Organic Pads
FRONT BRAKE ROTOR TRP TR203-29, 203mm
REAR BRAKE TRP Trail EVO, 4 Piston, Organic Pads
REAR BRAKE ROTOR TRP TR180-29, 180mm
BRAKE LEVERS TRP Trail EVO

Components
HANDLEBAR TranzX 6061 Butted Alloy, 780mm, 20mm Rise
STEM 6061 Alloy, 40mm Length, 35mm Clamp
SEATPOST SDG Tellis Dropper, 34.9mm, 150mm (s), 170mm (M, L), 200mm (XL, XXL)
HEADSET Sealed Bearing, Tapered
HEADSET SPACER 2x10mm & 1x5mm- Black
SADDLE Fizik Alpaca Terra with Wingflex
GRIPS VP Lock-On
PEDALS VP Nylon Flat
SEATPOST CLAMP Norco Alloy Nutted Clamp

Wheels
FRONT HUB Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt
REAR HUB Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt
RIMS Stan's Flow S1 29" 32H
FRONT TIRE Vittoria Mazza 2.4" Trail G2.0, Folding
REAR TIRE Vittoria Martello 2.35" Trail G2.0, Folding
SPOKES/NIPPLES Stainless, Black
