Colour |
Trek Black |
Size |
S, M, L |
Frame |
Alpha Gold Aluminium, stagger top tube, rack and mudguard mounts, DuoTrap S-compatible, cantilever-brake mount, 135x5 mm QR |
Fork |
FX Steel, threadless steel steerer, rack mounts, cantilever-brake mount, 405 mm axle-to-crown, 5x100 mm QR |
Front hub |
Formula FM21 alloy, 100x5 mm QR |
Rear hub |
Formula FM31 alloy, 135x5 mm QR |

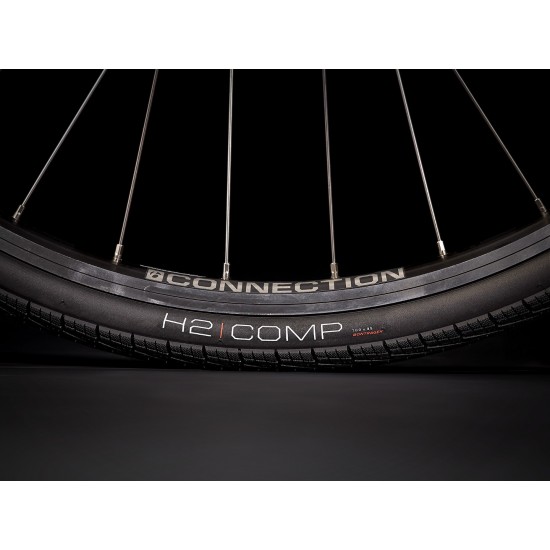

Rim |
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
Tyre |
Bontrager H2, wire bead, 30 tip, 700x35 c |
Shifter |
Shimano Altus EF500, 7-speed |
Front Derailleur |
Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull |

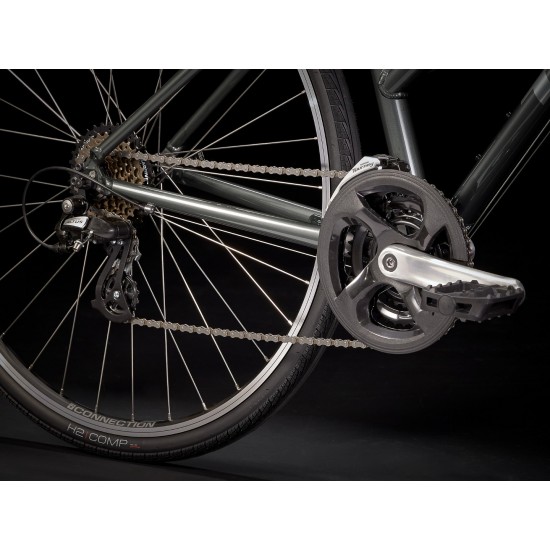

Rear Derailleur |
Shimano Altus M310 |
Crank |
Forged alloy, 48/38/28, chainguard, 170 mm length |
Bottom bracket |
VP BC73, 68 mm, threaded |
Cassette |
SunRace MFM300 freewheel, 14-34, 7-speed |
Chain |
KMC Z7 |
Pedal |
Well go nylon platform |

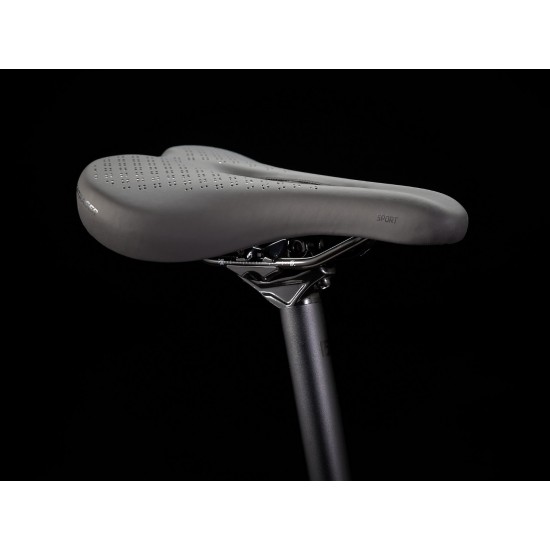

Saddle |
Bontrager Sport |
Seat post |
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

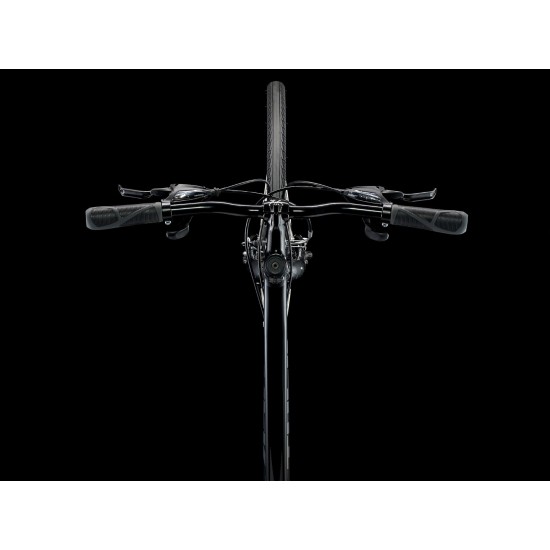

Handlebar |
Size: S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |

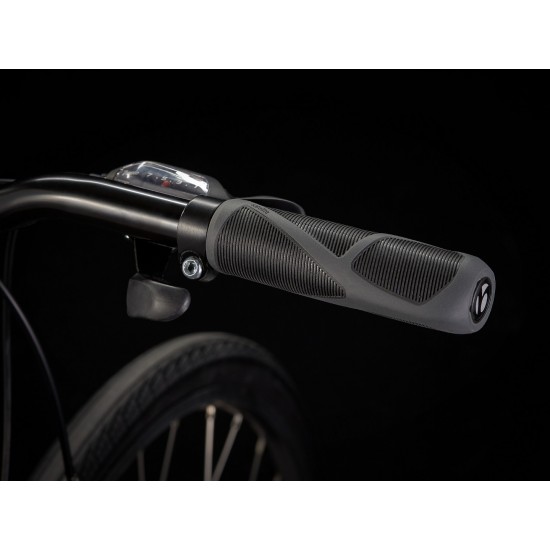

Grips |
Bontrager Satellite |
Stem |
Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90mm length
Size: L, Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
Head set |
1-1/8" treadles, sealed cartridge bearings |

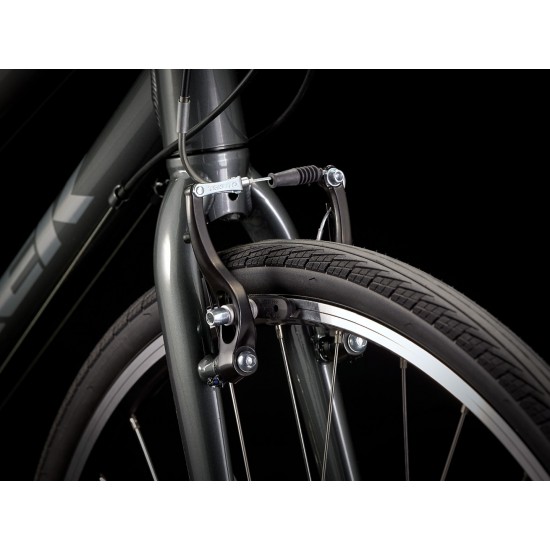

Brake |
Tektro alloy linear-pull |
Weight |
M - 12.33 kg / 27.19 lbs |
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb) |
